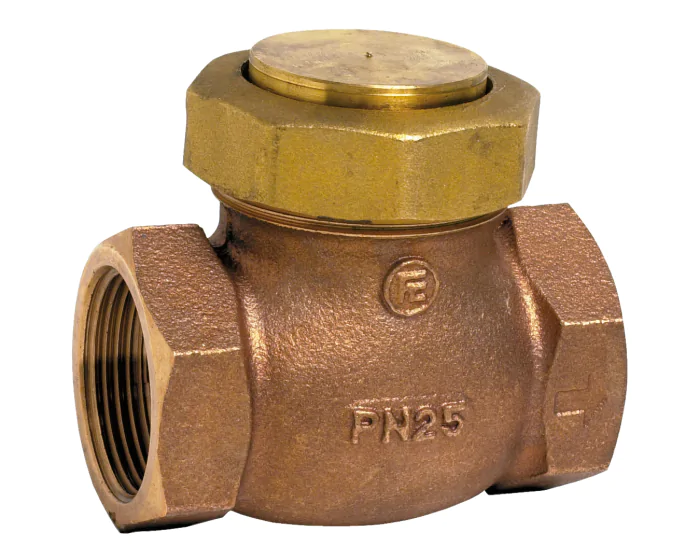

The 350 series vertical lift check valve, or piston check valve, is made of bronze with metal-metal tightness, female BSP cylindrical threaded, horizontal mounting, for heating networks, water supply, distribution networks, compressed air.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Mounting direction | Horizontal |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Closure member material | Stainless steel AISI 316 |
| Application | Water supply and distribution network |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 46.0 |
| Sealing | Metal / Metal |
| Fluid | Cold water |
| Body material | Bronze |
| PS (bar) | 25 |
| Connections | BSP FF |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| CE | Yes |
| Obturator type | Piston |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Piston 1/4'' | 350002 | S1010799 |
€52.29
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 3/8'' | 350003 | S1010800 |
€52.39
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1/2'' | 350004 | S1010801 |
€56.60
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 3/4'' | 350005 | S1010802 |
€72.00
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1'' | 350006 | S1010803 |
€99.71
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1''1/4 | 350007 | S1010804 |
€169.66
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 1''1/2 | 350008 | S1010805 |
€216.46
(excl. btw)
|
add to cart |
| BSP FF Bronze Piston 2'' | 350009 | S1010806 |
€292.99
(excl. btw)
|
add to cart |
